Shenfun - High-Performance Computing platform for the Spectral Galerkin method¶

Professor Mikael Mortensen

Department of Mathematics, University of Oslo

Presented at the International Conference on Scientific Computing and Applications (ICSCA), Xiamen, China, 28/5 - 2019

Shenfun - facts¶

1. Shenfun is named in honour of Professor Jie Shen for his seminal work on the spectral Galerkin method:-)
2. Shenfun is a high performance computing platform for solving partial differential equations (PDEs) with the spectral Galerkin method (with numerical integration).
3. Shenfun has been run with 65,000 processors on a Cray XC40.

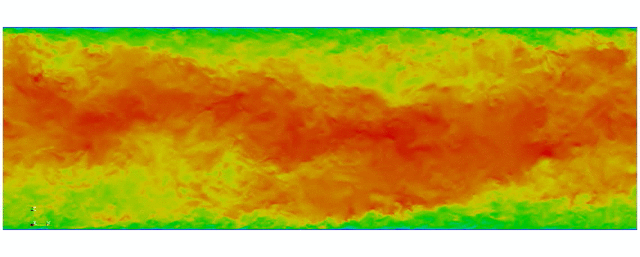

4. Shenfun is a high-level Python package originally developed for pseudo-spectral turbulence simulations.

The Spectral Galerkin method¶

Advantages¶

• Accuracy (spectral)
• Sparsity - very low memory use for coefficient matrices
• Efficiency - Very fast linear algebra solvers
• Robustness (round-off errors) - condition numbers much lower than for collocation methods

Disadvantages¶

• No complex grids. Structured tensor product grids only
• Nonlinear terms must be implemented explicitly (pseudospectral)
• Generally considered more difficult to implement since we solve equations in spectral space

The Spectral Galerkin method (in a nutshell)¶

approximates solutions $u(x)$ using global trial functions $\phi_k(x)$ and unknown expansion coefficients $\hat{u}_k$

$$ u(x) = \sum_{k=0}^{N-1}\hat{u}_k \phi_k(x) $$

Multidimensional solutions are formed from outer products of 1D bases

$$ u(x, y) = \sum_{k=0}^{N_0-1}\sum_{l=0}^{N_1-1}\hat{u}_{kl} \phi_{kl}(x, y)\quad \text{ or }\quad u(x, y, z) = \sum_{k=0}^{N_0-1}\sum_{l=0}^{N_1-1} \sum_{m=0}^{N_2-1}\hat{u}_{klm} \phi_{klm}(x, y, z) $$

where, for example

$$ \begin{align} \phi_{kl}(x, y) &= T_k(x) L_l(y)\\ \phi_{klm}(x, y, z) &= T_k(x) L_l(y) \exp(\text{i}mz) \end{align} $$

$T_k$ and $L_k$ are Chebyshev and Legendre polynomials.

The Spectral Galerkin method¶

solves PDEs, like Poisson's equation

\begin{align} \nabla^2 u(x) &= f(x), \quad x \in [-1, 1] \\ u(\pm 1) &= 0 \end{align}

using variational forms by the method of weighted residuals. I.e., multiply PDE by a test function $v$ and integrate over the domain. For Poisson this leads to the problem:

Find $u \in H^1_0$ such that

$$(\nabla u, \nabla v)_w^N = -(f, v)_w^N \quad \forall v \in H^1_0$$

Here $(u, v)_w^{N}$ is a weighted inner product and $v(=\phi_j)$ is a test function. Note that test and trial functions are the same for the Galerkin method.

Weighted inner products¶

The weighted inner product is defined as

$$ (u, v)_w = \int_{\Omega} u \overline{v} w \, d\Omega, $$

where $w(\mathbf{x})$ is a weight associated with the chosen basis (different bases have different weights). The overline represents a complex conjugate (for Fourier).

$\Omega$ is a tensor product domain spanned by the chosen 1D bases.

In Shenfun quadrature is used for the integrals¶

1D with Chebyshev basis:

$$ (u, v)_w ^N = \sum_{i=0}^{N-1} u(x_i) v(x_i) \omega_i \approx \int_{-1}^1 \frac{u v}{\sqrt{1-x^2}} \, {dx}, $$

where $\{\omega_i\}_{i=0}^{N-1}$ are the quadrature weights associated with the chosen basis and quadrature rule. The associated quadrature points are denoted as $\{x_i\}_{i=0}^{N-1}$.

2D with mixed Chebyshev-Fourier:

$$ (u, v)_w^N = \int_{-1}^1\int_{0}^{2\pi} \frac{u \overline{v}}{2\pi\sqrt{1-x^2}} \, {dxdy} \approx \sum_{i=0}^{N_0-1}\sum_{j=0}^{N_1-1} u(x_i, y_j) \overline{v}(x_i, y_j) \omega^{(x)}_i \omega_j^{(y)} , $$

Spectral Galerkin solution procedure¶

1. Choose function space(s) satisfying the correct boundary conditions
2. Transform PDEs to variational forms using inner products
3. Assemble variational forms and solve resulting linear algebra systems

Orthogonal bases¶

Family	Basis	Domain
Chebyshev	$$\{T_k\}_{k=0}^{N-1}$$	$$[-1, 1]$$
Legendre	$$\{L_k\}_{k=0}^{N-1}$$	$$[-1, 1]$$
Fourier	$$\{\exp(\text{i}kx)\}_{k=-N/2}^{N/2-1}$$	$$[0, 2\pi]$$
Hermite	$$\{H_k\}_{k=0}^{N-1}$$	$$[-\infty, \infty]$$
Laguerre	$$\{La_k\}_{k=0}^{N-1}$$	$$[0, \infty]$$

Jie Shen's bases with Dirichlet bcs¶

family	Basis	Boundary condition
Chebyshev	$$\{T_k-T_{k+2}\}_{k=0}^{N-3}$$	$$u(\pm 1) = 0$$
Legendre	$$\{L_k-L_{k+2}\}_{k=0}^{N-3}$$	$$u(\pm 1) = 0$$
Hermite	$$\exp(-x^2)\{H_k\}_{k=0}^{N-1}$$	$$u(\pm \infty) = 0$$
Laguerre	$$\exp(-x/2)\{La_k-La_{k+1}\}_{k=0}^{N-2}$$	$$u(0) = u(\infty) = 0$$

Shen's bases with Neumann $u'(\pm 1) = 0$¶

family	Basis
Chebyshev	$$\left\{T_k-\frac{k^2}{(k+2)^2}T_{k+2}\right\}_{k=0}^{N-3}$$
Legendre	$$\left\{L_k-\frac{k(k+1)}{(k+2)(k+3)}L_{k+2}\right\}_{k=0}^{N-3}$$

Shen's biharmonic bases $u(\pm 1) = u'(\pm 1) = 0$¶

family	Basis
Chebyshev	$$\left\{T_k-\frac{2(k+2)}{k+3}T_{k+2}+\frac{k+1}{k+3} T_{k+4}\right\}_{k=0}^{N-5}$$
Legendre	$$\left\{L_k-\frac{2(2k+5)}{(2k+7)}L_{k+2}+\frac{2k+3}{2k+7}L_{k+4}\right\}_{k=0}^{N-5}$$

Multidimensional tensor product spaces¶

$$ \begin{align} L_0 &= \{L_k(x)-L_{k+2}(x)\}_{k=0}^{N-3} \\ C_0 &= \{T_k(x)-T_{k+2}(x)\}_{k=0}^{N-3} \\ L_1 &= \{L_l(y)\}_{l=0}^{N-1} \\ LL(x, y) &= L_0(x) \times L_1(y) \\ CL(x, y) &= C_0(x) \times L_1(y) \end{align} $$

Challenge 1¶

Create a 3-dimensional tensor product space for a scalar $u$, with problem described by

$$ \begin{align} \Omega &= [-1, 1]\times[-1, 1] \times [0, 2\pi] \\ u(\pm 1, y, z) &= 0 \\ u'(x, \pm 1, z) &= 0 \\ u(x, y, 2\pi) &= u(x, y, 0) \end{align} $$

Operators in shenfun¶

Act on instances of a TestFunction, TrialFunction or Function

• div
• grad
• curl
• Dx (partial derivative)

Assembly¶

• project
• inner

The shenfun Function represents the solution¶

uh = Function(L0)

$$ u_h(x) = \sum_{k=0}^{N-1} \hat{u}_k \phi_{k}(x) $$

The function evaluated for all quadrature points, $\{x_j\}_{j=0}^{N-1}$, is an Array

uj = Array(L0)

There is a (fast) backward transform for moving from Function to Array, and a forward transform to go the other way.

Projections¶

Project $g(\mathbf{x})$ to $V$:

Find $u$ in $V$ such that:

$$(u, v)_w = (Ig, v)_w \quad \text{for} \, v \in V $$

where $Ig$ is $\{g(x_j)\}_{j=0}^{N-1}$, i.e., $g(x)$ evaluated on the quadrature mesh.

Works if $g(x)$ is

• an Array, which is exactly a Function evaluated on the mesh
• an expression involving a Function, like div(grad(uh))
• a sympy expression, like sin(x)

Challenge 2¶

Create a shenfun Function that corresponds to the Chebyshev polynomial $T_2(x)=2x^2-1$

Compute the derivative of this Function using project and Dx and verify that it equals $4x$.

Challenge 3¶

Create a sympy function

$$f(x, y) = sin(4x)cos(3y)$$

Project $f(x, y)$ to an orthogonal 2D Chebyshev space. Project then $\nabla f$ to a vector tensor product space. Compare the results with that obtained by using sympy to compute the derivatives.

Implementation details¶

Implementation matches mathematics¶

$$ A = (\nabla u, \nabla v)_w^N $$

A diagonal stiffness matrix!

Complete Poisson solver with error verification in 1D¶

2D - still closely matching mathematics¶

?¶

A is a list of two TPMatrix objects???

TPMatrix is a Tensor Product matrix¶

A TPMatrix is the outer product of smaller matrices (2 in 2D, 3 in 3D etc).

Consider the inner product:

$$ \begin{align} (\nabla u, \nabla v)_w &= \frac{1}{2\pi}\int_{-1}^{1}\int_{0}^{2\pi} \left(\frac{\partial u}{\partial x}, \frac{\partial u}{\partial y}\right) \cdot \left(\frac{\partial \overline{v}}{\partial x}, \frac{\partial \overline{v}}{\partial y}\right) {dxdy} \\ (\nabla u, \nabla v)_w &= \frac{1}{2\pi}\int_{-1}^1 \int_{0}^{2\pi} \frac{\partial u}{\partial x}\frac{\partial \overline{v}}{\partial x} {dxdy} + \int_{-1}^1 \int_{0}^{2\pi} \frac{\partial u}{\partial y}\frac{\partial \overline{v}}{\partial y} {dxdy} \end{align} $$

which, like A, is a sum of two terms. These two terms are the two TPMatrixes returned by inner above.

Now each one of these two terms can be written as the outer product of two smaller matrices.

Consider the first, inserting for test and trial functions

$$ \begin{align} v &= \phi_{kl} = (L_k(x)-L_{k+2}(x))\exp(\text{i}ly) \\ u &= \phi_{mn} \end{align} $$

The first term becomes

$$ \small \begin{align} \int_{-1}^1 \int_{0}^{2\pi} \frac{\partial u}{\partial x}\frac{\partial \overline{v}}{\partial x} \frac{dxdy}{2\pi} &= \underbrace{\int_{-1}^1 \frac{\partial (L_m-L_{m+2})}{\partial x}\frac{\partial (L_k-L_{k+2})}{\partial x} {dx}}_{a_{km}} \underbrace{\int_{0}^{2\pi} \exp(iny) \exp(-ily) \frac{dy}{2\pi}}_{\delta_{ln}} \\ &= a_{km} \delta_{ln} \end{align} $$

and the second

$$ \small \begin{align} \int_{-1}^1 \int_{0}^{2\pi} \frac{\partial u}{\partial y}\frac{\partial \overline{v}}{\partial y} \frac{dxdy}{2\pi} &= \underbrace{\int_{-1}^1 (L_m-L_{m+2})(L_k-L_{k+2}) {dx}}_{b_{km}} \underbrace{\int_{0}^{2\pi} ln \exp(iny) \exp(-ily)\frac{dy}{2\pi}}_{l^2\delta_{ln}} \\ &= l^2 b_{km} \delta_{ln} \end{align} $$

All in all:

$$ (\nabla u, \nabla v)_w = \left(a_{km} \delta_{ln} + l^2 b_{km} \delta_{ln}\right) $$

$$ (\nabla u, \nabla v)_w = \left(a_{km} \delta_{ln} + l^2 b_{km} \delta_{ln}\right) $$

3D Poisson (with MPI and Fourier x 2)¶

Contour plot of slice with constant y¶

Run with MPI distribution of arrays¶

Here we would normally run from a bash shell

But since we are in a Jupyter notebook lets actually do this from python in a live cell:-)

Note that Fourier bases are especially attractive because of features easily handled with MPI:

- diagonal matrices
- fast transforms

Nonlinearities (convolution)¶

All treated with pseudo-spectral techniques

$$ \begin{align} \hat{w}_k &= \widehat{u^2}_k \end{align} $$

That is, transform Functions to real space Arrays, perform the nonlinear operation there and transform the nonlinear product back to spectral space (to a Function).

3/2-rule or 2/3-rule is possible for dealiasing with Fourier. Not for the remaining bases.

Challenge 3¶

Implement nonlinear solver for¶

$$ \begin{align} \nabla^2 u(x) + \alpha |\nabla u(x)|^2 &= -1, \quad x \in [-1, 1]\\ u(\pm 1) = 0 &\text{ and } \alpha \in \mathbb{R^+} \end{align} $$

Note that if $\alpha=0$ then obviously $u(x) = a_0+a_1x-0.5x^2$. This solution can be realized with basis function $T_0(x)-T_2(x)$, which equals $2(1-x^2)$, and which is the first basis function in the space

$$ V = \text{span}\{T_k-T_{k+2}\}_{k=0}^{N-3} $$

In other words, for $u$ in $V$ the solution is $\hat{u}_0 = 0.25$ and $\hat{u}_k = 0$ for all $k=1, 2, \ldots$.

$$ \begin{align} u(x) &= \sum_{k=0}^{N-3}\hat{u}_k (T_k-T_{k+2}) = 0.25(1-(2x^2-1)) \\ &= 0.5(1-x^2) \end{align} $$

This is a good initial guess to find the nonlinear solution when $\alpha>0$! What is a good initial guess for Legendre? You need to iterate to find the solution when $\alpha > 0$!

Mixed tensor product spaces¶

Solve several equations simultaneously

• Coupled equations
• Block matrices and vectors
• Tensor spaces of vectors, like velocity $u \in [\mathbb{R}^3]^3$

Stokes equations¶

lid-driven cavity - coupled solver¶

$$ \begin{align*} \nabla^2 \mathbf{u} - \nabla p &= \mathbf{f} \quad \text{in } \Omega, \quad \quad \Omega = [-1, 1]\times[-1, 1]\\ \nabla \cdot \mathbf{u} &= h \quad \text{in } \Omega \\ \int_{\Omega} p dx &= 0 \\ \mathbf{u}(\pm 1, y) = \mathbf{u}(x, -1) = (0, 0) &\text{ and }\mathbf{u}(x, 1) = (1, 0) \text{ or } ((1-x^2)(1+x^2), 0) \end{align*} $$

Given appropriate spaces $V$ and $Q$ a variational form reads: find $(\mathbf{u}, p) \in V \times Q$ such that

$$ \begin{equation} a((\mathbf{u}, p), (\mathbf{v}, q)) = L((\mathbf{v}, q)) \quad \forall (\mathbf{v}, q) \in V \times Q \end{equation} $$

where bilinear and linear forms are, respectively

$$ \begin{equation} a((\mathbf{u}, p), (\mathbf{v}, q)) = \int_{\Omega} (\nabla^2 \mathbf{u} - \nabla p) \cdot {\mathbf{v}} \, dx_w + \int_{\Omega} \nabla \cdot \mathbf{u} \, {q} \, dx_w, \end{equation} $$$$ \begin{equation} L((\mathbf{v}, q)) = \int_{\Omega} \mathbf{f} \cdot {\mathbf{v}}\, dx_w + \int_{\Omega} h {q} \, dx_w \end{equation} $$

Using integration by parts for Legendre

$$ \begin{equation} a((\mathbf{u}, p), (\mathbf{v}, q)) = -\int_{\Omega} \nabla \mathbf{u} \cdot \nabla{\mathbf{v}} \, dx_w + \int_{\Omega} \nabla \cdot \mathbf{v} \, {p} \, dx_w + \int_{\Omega} \nabla \cdot \mathbf{u} \, {q} \, dx_w, \end{equation} $$

Implementation of spaces, basis functions¶

Implementation Stokes - matrices and solve¶

Sparsity pattern of block matrix¶

$$ M = \begin{bmatrix} A[0]+A[1] & 0 & G[0] \\ 0 & A[2]+A[3] & G[1] \\ D[0] & D[1] & 0 \end{bmatrix} $$

Block matrix¶

$$ M = \begin{bmatrix} A[0]+A[1] & 0 & G[0] \\ 0 & A[2]+A[3] & G[1] \\ D[0] & D[1] & 0 \end{bmatrix} $$

where $D = G^T$ for the Legendre basis, making $M$ symmetric. For Chebyshev $M$ will not be symmetric.

Solver through scipy.sparse.linalg

For Navier-Stokes of the lid-driven cavity, see https://github.com/spectralDNS/shenfun/blob/master/demo/NavierStokesDrivenCavity.py

Thank you for your time😃¶
